Compressed Air Hose

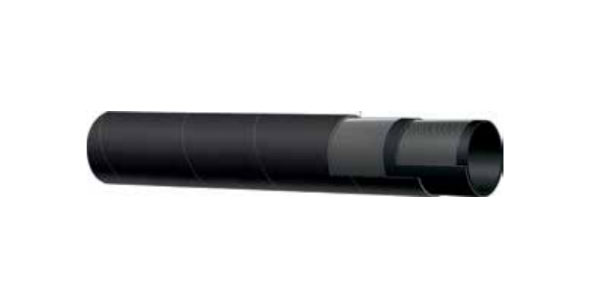

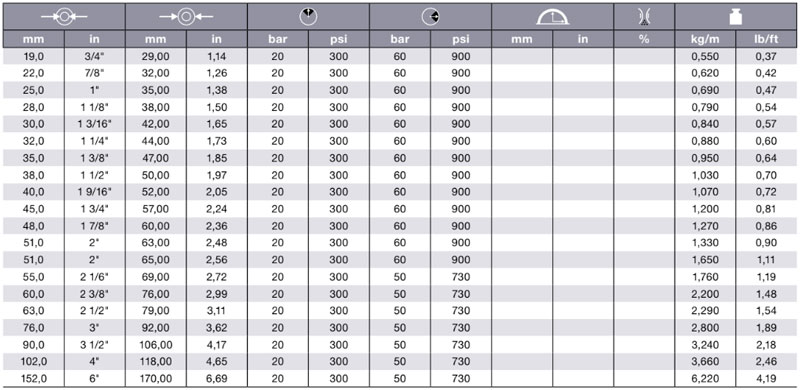

155AA
Compressed air 20 bar (300 psi) - Heavy Duty
Tube: black SBR/NBR – oil mist resistant.
Reinforcement: high tensile textile cords.
Cover: black SBR – abrasion and ozone resistant.
Application: compressed air designed for heavy duty applications.
Constant operation: -30 °C +80 °C (-22 °F +176 °F)
Reinforcement: high tensile textile cords.
Cover: black SBR – abrasion and ozone resistant.
Application: compressed air designed for heavy duty applications.
Constant operation: -30 °C +80 °C (-22 °F +176 °F)
155AK
Compressed air 20 bar (300 psi) - Heavy duty
Tube: black SBR/NBR – oil mist resistant.
Reinforcement: high tensile textile cords.
Cover: yellow SBR – abrasion and ozone resistant.
Application: compressed air designed for heavy duty applications.
Constant operation: -30 °C +80 °C (-22 °F +176 °F)
Reinforcement: high tensile textile cords.
Cover: yellow SBR – abrasion and ozone resistant.
Application: compressed air designed for heavy duty applications.
Constant operation: -30 °C +80 °C (-22 °F +176 °F)
140AK
Compressed air - Steel braided
Tube: black SBR – oil mist resistant.
Reinforcement: one or two high tensile steel wire braids.
Cover: yellow SBR – abrasion, ozone, hydrocarbon resistant – pin pricked.
Application: high pressure compressed air designed for heavy duty mine and quarry applications where long service life and maximum safety is required.
Constant operation: -30 °C +80 °C (-22 °F +176 °F)
Reinforcement: one or two high tensile steel wire braids.
Cover: yellow SBR – abrasion, ozone, hydrocarbon resistant – pin pricked.
Application: high pressure compressed air designed for heavy duty mine and quarry applications where long service life and maximum safety is required.
Constant operation: -30 °C +80 °C (-22 °F +176 °F)
142AK
Compressed air 40 bar (600 psi) - High temperature - Oil resistant - Steel braided
Tube: black NBR (RMA Class A) – oil mist resistant.
Reinforcement: high tensile steel wire braids.
Cover: yellow SBR/NBR – abrasion, ozone, hydrocarbon and flame resistant – pin pricked.
Application: high pressure compressed air designed for heavy duty mine and quarry applications where long service life and maximum safety is required.
Constant operation: -40 °C +120 °C (-40 °F +248 °F)
Reinforcement: high tensile steel wire braids.
Cover: yellow SBR/NBR – abrasion, ozone, hydrocarbon and flame resistant – pin pricked.
Application: high pressure compressed air designed for heavy duty mine and quarry applications where long service life and maximum safety is required.
Constant operation: -40 °C +120 °C (-40 °F +248 °F)
