EPDM, XLPE or UPE tube to guarantee the appropriate level of chemical resistance to the medium to be conveyed.
EN 12115 compliant range to ensure that users are not exposed to danger from fire or explosion and that the environment is protected against contamination or damage.
16 bar WP
4:1 safety factor
Flame resistance: 3 minutes exposure to naked flame
Electrical resistance along tube and cover: ≤ 106 Ohm/length
Electrical resistance through the hose wall: ≤ 109 Ohm/length
Suitable to be used in potentially explosive environments, where dissipation of electrostatic charges is a safety requirement
Wide temperature range
High flexibility
Hose assembled by ALFAGOMMA France certified by DREAL according to TMD decree
Hose assembled by ALFAGOMMA France certified ATEX (94/9/EC)
5050G
Acid-chemical S&D 16 bar (240 psi) - XLPE
Tube: transparent XLPE (Cross Linked Polyethylene). Reinforcement: high tensile textile cords with embedded steel helix wire. Cover: green EPDM – abrasion and ozone resistant. Application: acid and chemical suction and delivery. Suitable
for 90% of existing chemicals. Constant operation: -30 °C +80 °C (-22 °F +176 °F)

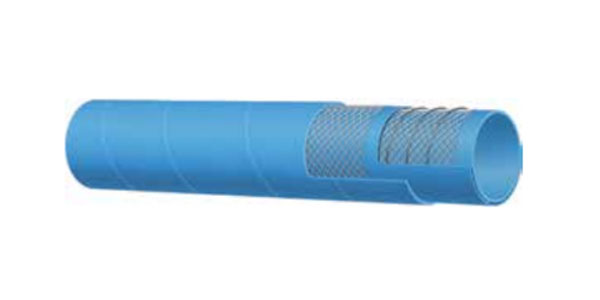

509OE
Acid-chemical S&D 16 bar (240 psi) - UPE
FDA - EU 10/2011 A+B+C+D2
Tube: transparent UPE (Ultra High Molecular Weight
Polyethylene). Reinforcement: high tensile textile cords with embedded steel helix wire. Cover: blue EPDM – abrasion and ozone resistant. Application: acid and chemical suction and delivery. Suitable for 98% of existing chemicals. Constant operation: -30 °C +100 °C (-22 °F +212 °F)
depending on conveyed chemical.
