Composite Hose

Food Grade Hose

Application: Relyonflex Food use for transfer food, food oil, milk and so on. Also use in pharma factory, food loading and unloading etc. It’s no plasticizer; non-toxic; no decomposition of any odor and taste; no smell.
  • No plasticizer composition
  • Non-toxic
  • No decomposition of any odor and taste
  • No smell
Type SGP SGT SGA SST
Inner wire Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Outer wire Galvanized Steel Galvanized Steel Galvanized Steel Galvanized Steel
Inner layer Polypropylene Teflon Teflon/PA Teflon
W.T -30°C ~ 100°C - - -
W.P 150Psi, 220Psi, 360Psi - - -
Size 1" ~ 10" - - -
composite-hose-malaysia

Relyonflex Composite Hose Parameters

I.D. (mm/inch) Max. W.P (PSI/Mpa) Bust Pressure (PSI/Mpa) Weight (kg/m) Bend Radius (mm)
25/1 150/1.03 600/4.2 0.9 100
38/ 150/1.03 600/4.2 1.5 110
51/2 150/1.03 600/4.2 1.8 125
65/ 150/1.03 600/4.2 2.5 150
76/3 150/1.03 600/4.2 2.3 200
100/4 150/1.03 600/4.2 3.8 380
150/6 150/1.03 600/4.2 9.9 500
25/1 220/1.516 880/6.06 1.2 100
38/ 220/1.516 880/6.06 2.0 120
51/2 220/1.516 880/6.06 2.2 180
65/ 220/1.516 880/6.06 2.5 260
76/3 220/1.516 880/6.06 3.0 260
100/4 220/1.516 880/6.06 5.0 400
152/6 220/1.516 880/6.06 14 600
202/8 220/1.516 880/6.06 22 800
252/10 220/1.516 880/6.06 27 1100
* Our test temperature is 23°+2°. Parameters just for your reference. For more information. Please contact with us. * Note: Bust pressure indicated is at ambient temperature. Max. temperature rating can be maintained when working within limits of working pressure.

Relyonflex Tanker Hose

Application: Relyonflex Tanker hoses are used in railcar and road tanker, loading and unloading; storage tank and in-plant etc. Specifically engineered to handle oil, petrol, diesel, lubricating oil etc.
  • Work safety factor: 4:1
  • Colour : Red/Blue/Black
Type GGP PGP SSP SGT
Inner wire Galvanized Steel PP Coated Stainless Steel Stainless Steel Stainless Steel
Outer wire Galvanized Steel Galvanized Steel Stainless Steel Galvanized Steel
Inner layer Polypropylene Polypropylene Polypropylene Teflon
W.T -30° ~ 90° - - -
W.P 100Psi, 150Psi, 220Psi - - -
Size 2" ~ 6" - - -
* GGP is used for Hydrocarbons liquid (highly volatile, flammable liquid mixtures)
* PGP SSP SGT SST TST are used in transfer chemical liquid (corrosive, volatile)
* Teflon inner layer is the best corrosion-resistant materials
composite-hose-pipe

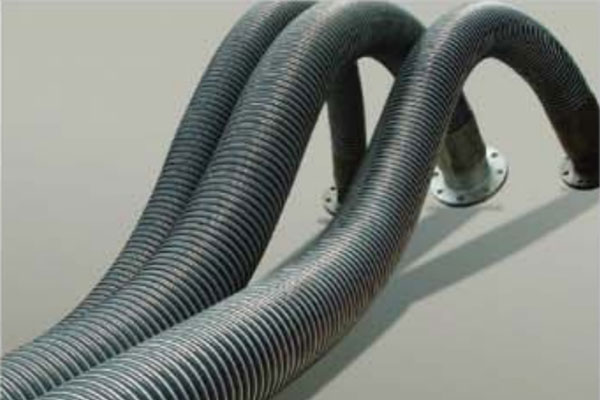

Relyonflex Loading Hose

Application: Relyonflex loading hose is a professional heavy-duty hose for transfer bulk chemical and petroleum products in particular, applying dockside and ship, ship to ship.
  • Work safety factor: 4:1
  • Colour : Red/Blue/Black
composite-hose-manufacturers
Type SGP PGP SSP SGT SST TST
Inner wire Stainless Steel PP Coated Stainless Steel Stainless Steel Stainless Steel Stainless Steel Teflon Coated Stainless Steel
Outer wire Galvanized Steel Galvanized Steel Stainless Steel Galvanized Steel Stainless Steel Stainless Steel
Inner layer Polypropylene Polypropylene Polypropylene Teflon Teflon Teflon
W.T -30° ~ 90° - - - - -
W.P 220Psi, 360Psi - - - - -
Size 2" ~ 10" - - - - -
* GGP is used for Hydrocarbons liquid (highly volatile, flammable liquid mixtures)
* PGP SSP SGT SST TST are used in transfer chemical liquid (corrosive, volatile)
* Teflon inner layer is the best corrosion-resistant materials
Note: Bust pressure indicated is at ambient temperature. Max. temperature rating can be maintained when working within limits of working pressure.

Relyonflex High Temperature Hose

Application: Relyonflex high temperature hose is used in the High-temperature field; transfer hot oil, hot water and so on.
  • Work safety factor: 4:1
  • Colour : Red
Type UT-SGT UHT-SGT
Inner wire Stainless Steel Stainless Steel
Outer wire Galvanized Steel / Stainless Steel Galvanized Steel / Stainless Steel
Inner layer TAIEN Composite Material TAIEN Composite Material
W.T -30° ~ 150° -30° ~ 220°
W.P 250Psi -
Size 1" ~ 10" -
composite-hose-manufacturers

Relyonflex Hose Transfer Sheet

1.P.S.
a) Inner wire
S=Stainless steel 304/316
G=Galvanized Steel
P=Polypropylene
b) Inner linner
P=Polypropylene
T=Teflon(PTFE)
2. Coupling material
CS=Carbon Steel
SS=stainless steel
CA=brass
3. Working environment
A = Can be worked under 70 °C
B = Can be worked under general temperature
C = Can’t be continued for a long time, must be cleaned after working
D = Not Recommended
4. Coupling material:
“✓” = Excellent
“x” = Not recommended

Relyonflex Composite Hose

Conveyant Hose End Fittings
Inner Wire CS SS CA
S S G P T
Inner Linner
P T P P T
Coal tar naphtha B B B B B
Diesel oil B B B B B
Fuel oil B B B B B
Turpentine C B C C B
Vasaline B B B B B
White spirit B B B B B
Jet fuel C B C C B
Motor fuel anti-knock compounds B B B B B
Paraffin wax B B B B B
Petroluem B B B B B
Petroleum ether C B C C B
Petroleum naphtha C B C C B
Transformer oil B B B B B
Vinyl acetate B A C B B
Vinegar A A D A A
Vinyl ethyl ether C B C C B
Vinylidene chloride C B C C B
Vinyl toluene C B C C B
Zine salts aqueous excluding halides B B D B A
Sodium hydrosulfide B A D B A
Sodium hydroxide B B D B A
Sodium Chloride C B D B A
Sodium Hypochlorite 20% C C D C B
Sulphuric acid 20% B B D B A
Sulphuric acid 20% - 85% C C D C B Exclusively Coupling
Sulphuric acid 85% C B D C B
Nitric acid 100% B B D A A
Nitric acid 70% D C D C B
Nitric acid 60% C B D B A
Nitric acid 30% B B B B A
Nitropropane 100% C B C C B
Nitrotoluene 100% B B C B B

Low Temperature Composite Hose Transfer Sheet

All wires of low temperature composite Hose are stainless steel. Transfer fluid as follows:
Butane/propane mix
Fluorinated refrigerants
Refrigerant gases
Ammonia
Acetaldehyde
Butadiene
Butane liquid
Butane
Butylene
Dimethylamine
Ethylamine
Ethyl chloride
Metheyl acetylene
Methyl bromide
Propane
Propadiene
Propylene
Vinyl chloride
Freon

Installation & Maintenance

  1. Hose assemblies must not be twisted either during installation or in used.
  2. Hoses must not be over flexed or bent into a smaller diameter than the specified minimum bend radius.
  3. Hose assemblies should be installed so that flexing always occurs in the same plane.
  4. It is recommended that flanged assemblies have a floating flange on one end for easier installation and to reduce the possibility of twist handling.
  5. Hoses should be stored in a straight line on solid supports or racks. Large bore hoses should be carried on a dollie or moved by crane.
  6. Hoses must not be supported by a single rope or wire. A wide belt sling should be used, supporting the hose at least every 3metres. Avoid curvatures that are less than the minimum bend radius of hose.
  7. Do not allow sharp bends adjacent to the end connection fitting this area is the weakest spot in any type of hose.
installation and maintenance
