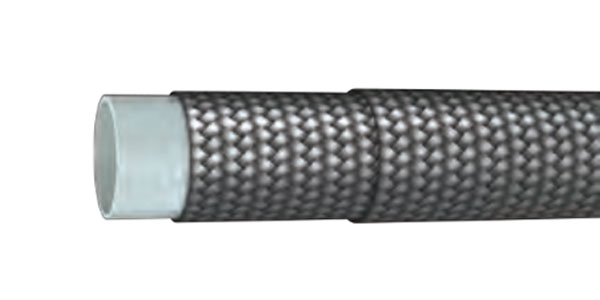

Construction
Core: Special quality of Sintered tube of polytetrafluoroethylene (P.T.F.E). Reinforcement: Double braids of 304 series of stainless steel wire. Application: P.T.F.E hose has an excellent temperature characteristics both in high and low temperature. Excellent chemical
resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose
is used generally in applications where all or one of the above properties is the main criteria Transport of
cryogenic gases at high pressures. Temperature Range: Continuous: -54°C to +204°C
EF 370 - PTFE - CONVOLUTED HOSE
Construction
Core: Helically convoluted sintered tube of polytetrafluoroethylene (P.T.F.E). Reinforcement: Single braid of 304/316 series of stainless steel wire. Application: P.T.F.E hose has an excellent temperature characteristics both in high and low temperature. Excellent chemical
resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is
used generally in applications where all or one of the above properties is the main criteria in automotive, chemical,
pharmaceutical & food processing, plastic & rubber molding machines. Also for some applications the tube can also
be made conductive to dissipate electro-static charges. Temperature Range: Continuous: -54°C to +260°C

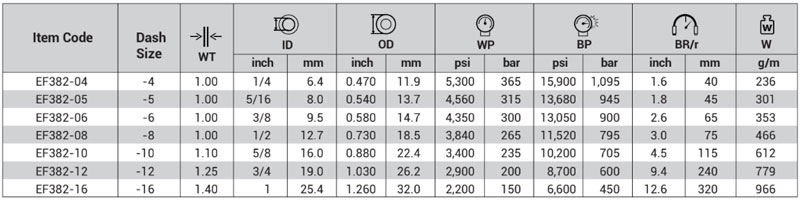

Note: Working and burst pressure are at 20°C Temperature

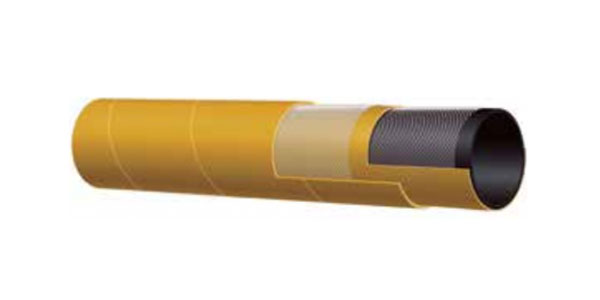

15NAK
Nitrogen 20 bar (300 psi) - heavy duty
Tube: black SBR/NBR – oil mist resistant. Reinforcement: high tensile textile cords. Cover: yellow SBR – abrasion and ozone resistant. Pin-pricked. Application: specially designed for delivery of nitrogen and inert gases in heavy duty applications. Safety factor: ≤ 51 mm 3:1 ≥ 63 mm 2,5:1 Constant operation: -30 °C +80 °C (-22 °F +176 °F)
